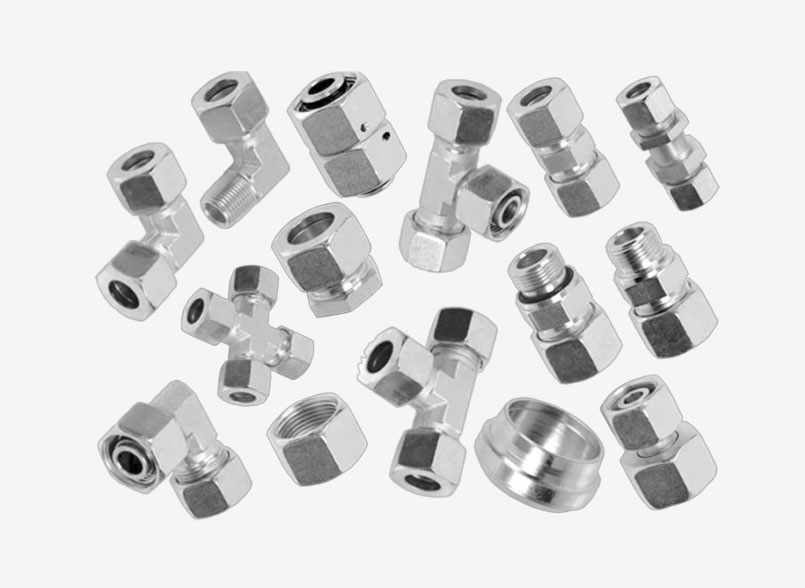

Product Name : Single Ferrule Tube Fittings

Description : Single ferrule fittings. are designed as per DIN 2353 standards & ISO 8434-1 type. Our single ferrule fittings can be interchangeable with there reputed brand make (as per DIN 2353 type only). Single ferrule fittings are available in light & heavy series for W.P. from-150 bar up to 700 bar for steel & stainless steel moc. Single Ferrule Fitting is a three piece design consisting of a body portion, a coupling nut and a ferrule.

During the assembly thenut is progressively tightened causing hardened ferrule to slide along the inner conical seat of the body and grip the tube. Tightened the nut, ring deforms due to 24" cone of fittings and bites into the steel tube, producing deep cut on the tube. The cut is visible on the outer diameter of the tube. This cut on the tube acts as metallic interlock and makes the joint leak roof at high pressure and under vibration.

Type Flare less Bite Type (Single Ferrule) Weld Nipple Type Standard DIN 2353/ISO 8434-1 Series LL (Very Light) L (Light) S (Heavy) Size 4mm to 42mm 1/8"OD to 2°OD 1/8"NB to 2"NB Pressure Ranging from 100 Bar to 630 Bar depending on type and size Material Steel, Stainless Steel, Brass (From extruded bar or forging) Surface Treatment Steel-Zinc Coated (A3C) or Phosphated, Trivalent Stainless.
